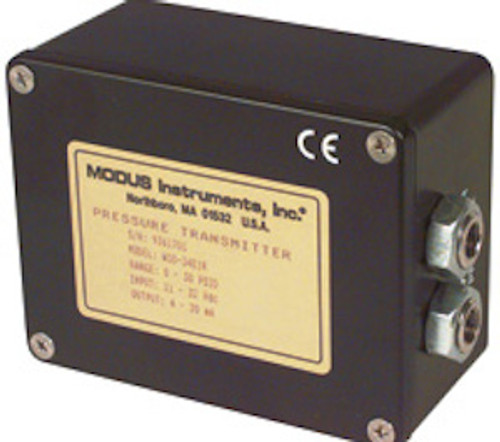

The W30 Series Differential Pressure Transmitters measure differential pressure in liquids and gases compatible with 316 stainless steel. The pressure transmitters are an excellent choice for HVAC and process applications, including measurement of differential pressure across flow elements, heat exchangers, pumps, filters, coils, and liquid level monitoring. Each W30 Series transmitter is housed in a compact, heavy-duty cast aluminum case designed to NEMA 4 (IP65) standards. The rugged design allows the differential pressure transmitter to withstand high overpressure without damaging the unit or affecting calibration. It is ±0.5% accurate and available in eight ranges up to 200 psi differential. The W30 Series is a 4-20 mA two-wire loop-powered device that operates on nominal 24 volt DC.
- Brand : Kele~~
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Indivisible Sale Qty : 1
- Manufacturer : Kele
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Take-back : No
