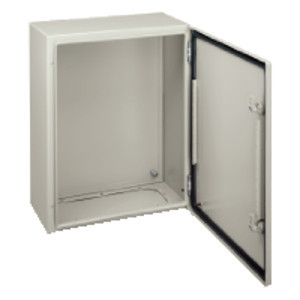

Spacial CRN Plain Door Enclosure w/o Mounting Plate|H600xW500xD150|Sides made from a single folded section; Back welded with double profile forming a protected sealed area|1 Front-facing door|3mm double-bar lock|Steel body|Expoxy polyester powder finish|Grey RAL 7035|IP66 IK10
- accessibility for operation : Front~~
- Application : Multi-purpose
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 98
- Circularity Profile : No need of specific recycling operations
- Color : Gray RAL 7035)
- Coverage : Core product
- Device Composition : 1 body
- Device Composition : 1 cable gland plate
- Device Composition : 1 door
- Device Composition : 1 lock
- door opening side : Reversible 120 °)
- door type : Solid
- enclosure nominal depth : 5.9 in (150 mm)
- enclosure nominal height : 23.6 in (600 mm)
- enclosure nominal width : 19.7 in (500 mm)
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : PanelSet CRN
- Global Keywords : Cabinet
- Global Keywords : Electrical box
- Global Keywords : Enclousure
- Global Keywords : Industrial box
- Global Keywords : IP66
- Global Keywords : Metallic enclosure
- Global Keywords : NSYCRN65150
- Global Keywords : PanelSet
- Global Keywords : Plain door enclosure
- Global Keywords : Sarel
- Global Keywords : Steel
- Global Keywords : Wall mounted
- Global warming ; Total life cycle? : 98 kg CO2 eq.
- IK Degree of Protection : IK10 IEC 62262
- installation accessory type : Wall-mounting
- IP Degree of Protection : IP66 IEC 60529
- Lock Type : 3 mm double-bar lock
- Manufacturer : Schneider Electric
- Material : Body steel
- mounting plate description : Without mounting plate
- Net Weight : 22.955 lb(US) (10.412 kg)
- number of doors : Front face 1
- Number of Units in Package 2 : 30
- Package 2 Height : 74.80 in (190.000 cm)
- Package 2 Length : 47.24 in (120.000 cm)
- Package 2 Weight : 720.912 lb(US) (327.000 kg)
- Package 2 width : 39.37 in (100.000 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CUL
- Product Certifications : DNV-GL
- Product Certifications : UL
- Product Name : PanelSeT CRN
- Product Or Component Type : Compact enclosure
- Range : PanelSeT
- REACh free of SVHC : Yes
- removable parts : Cable gland plate by screws
- removable parts : Door by hinges
- SCIP Number : E893f0a0-d2cc-4011-9425-3873dde70142
- Standards : CUL
- Standards : IEC 62208
- Standards : UL
- Surface Finish : epoxy-polyester powder
- Take-back : No
- type of gland plate : Standard
- Unit Type of Package 2 : PAM
- UNSPSC Classification v19 : 39121303
- UNSPSC Classification v23 : 39121303
- variant particularity : Back welded with double profile forming a protected sealed area
- variant particularity : Sides made from a single folded section
- Volume of Package 2 : 2280000.000 cm3
- Warranty : 18 months
