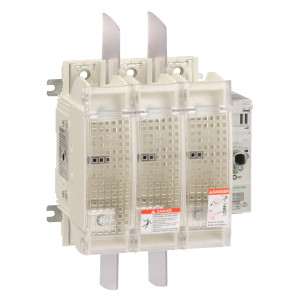

GS2MU3N

[Icm] rated short-circuit making capacity :

2 kA 400 V~~

[Ie] rated operational current :

200 A

[Ith] conventional free air thermal current :

200 A (at 104 °F (40 °C))

[Ui] rated insulation voltage :

750 V

[Uimp] rated impulse withstand voltage :

8 kV

Application :

Protection

Brand :

Schneider Electric

breaking capacity :

1600 A 400 V

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Connections - Terminals :

Power circuit lugs-ring terminals 0.02…0.2 in² (16…152 mm²)

Contacts Type And Composition :

3 NO

Depth :

5.1 in (130 mm)

Device Short Name :

GS2MU

Electrical Durability :

6000 cycles

Final Result for Flywheel performance tracking :

Non Flywheel

fire resistance :

1760 °F (960 °C) body

fuse size :

J

fuse type :

UL

Global Keywords :

50/60Hz

Global Keywords :

External handle

Global Keywords :

Fuse size j

Global Keywords :

Switch discoonector fuse

Global Keywords :

TeSys GS fuse

Global Keywords :

UL fuse type

Height :

7.7 in (195 mm)

IP Degree of Protection :

IP20 IEC 60529 with terminal cover)

Manufacturer :

Schneider Electric

Mechanical Durability :

10000 cycles

Mounting Support :

Plate

Network Frequency :

50/60 Hz

Network Type :

AC

Network Type :

DC

Number of Units in Package 2 :

3

Number of Units in Package 3 :

12

Package 2 GTIN :

43606480512368

Package 2 Height :

11.81 in (30.000 cm)

Package 2 Length :

23.62 in (60.000 cm)

Package 2 Weight :

24.846 lb(US) (11.270 kg)

Package 2 width :

15.75 in (40.000 cm)

Package 3 Height :

29.53 in (75.000 cm)

Package 3 Length :

31.50 in (80.000 cm)

Package 3 Weight :

121.995 lb(US) (55.336 kg)

Package 3 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Product Name :

TeSys GS

Product Or Component Type :

Switch-disconnector-fuse

protected poles description :

3t

Range :

TeSys

rated operational power in W :

100 kW 400 V

rated operational power in W :

140 kW 500 V

rated operational power in W :

185 kW 690 V

REACh free of SVHC :

Yes

short-circuit withstand :

200 kA

Standards :

CSA C22.2 No 4

Standards :

UL98

Take-back :

No

Temperature Ambient Operating Range :

-4…158 °F (-20…70 °C)

Temperature Shipping and Storage Range :

-40…176 °F (-40…80 °C)

Tightening Torque :

Power circuit 75.2 lbf.in (8.5 N.m)

Toxic heavy metal free :

Yes

Type Of Network :

3P

type of operating handle :

External frontal

Unit Type of Package 2 :

S04

Unit Type of Package 3 :

P06

UNSPSC Classification v19 :

39122233

UNSPSC Classification v23 :

39122233

Volume of Package 2 :

72000.000 cm3

Volume of Package 3 :

360000.000 cm3

Width :

7.7 in (196.2 mm)
