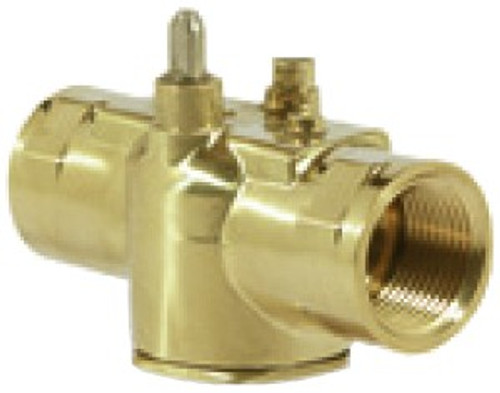

Valve Body (VM2333): |Body Size: 20 mm (3/4 in) |Configuration: 2-Way |Type: Zone |Connection: Rp Internal |Material Trim: Brass |Flow Coefficient: 4 Cv |Control Media: Glycol 25 to 60% and Water |Product Line: Schneider Electric |Product Range: Erie PopTop |Product Series: VM2 Product Alert: Not for use with steam
- Body Size : 20 mm (3/4 in)~~
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 5
- Circularity Profile : No need of specific recycling operations
- Configuration : 2-Way
- Connection Type : Rp Internal
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Characteristic : Equal Percentage
- Flow Coefficient : 3.46 kvs
- Flow Coefficient : 4 cv
- Global warming ; Total life cycle? : 5 kg CO2 eq.
- Manufacturer : Schneider Electric
- Material Body : Forged brass
- Material Stem : Chrome Plated Brass
- Material Stem : Nickel-Plated
- Material Trim : Brass
- Media Compatibility : Glycol 25 %
- Media Compatibility : Glycol 30 %
- Media Compatibility : Glycol 50 %
- Media Compatibility : Glycol 60 %
- Media Compatibility : Water
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Paddle Material : High Temperature Thermoplastic/Rubber
- Pipe Size : 20 mm
- Pressure Allowable Static : 400 psi
- Pressure Class : ANSI class 400
- Product Alert : Not for use with steam
- Product Or Component Type : Valve
- Seat Leakage : Port A: Class IV (0.01 %)
- Seat Material : Port A: brass
- Selection Tools : Valve Selection Tool
- Stem Movement : Rotary
- Take-back : No
- Temperature Range Fluid : 32…199 °F (0…93 °C)
- Valve Product Range : Erie PopTop
- Valve Product Series : VM2
- Valve Type : Zone
