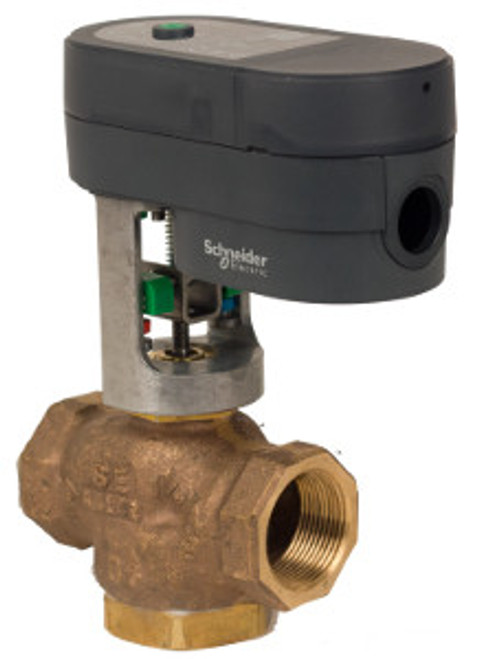

Valve Assembly: |Body Size: 3/4 in |Configuration: 3-Way Mixing |Type: Globe |Body Pattern: Straightway |Connection: NPT |Stem Flow Action: Stem up flow B to AB |Material Trim: Brass |Flow Coefficient: 7.5 cv |Close-Off Pressure: 157 PSI |Actuator Type: Electric |Control Signal: Floating |Loss of Power Position: Non-Spring Return |Power Input Voltage: 24 VAC, 20 to 24 VDC |Force: 78 lbf |Mechanical Movement: Linear |Additional Features: LED Status Indicator |Protection Rating: NEMA 2 Assembly Components:|Valve Body: VB-7313-0-4-06 |Actuator: MG350V-24F |Actuator Range: SmartX Actuator |Actuator Comment: Compatible w/ 2-Position Form A 24 VAC/VDC input. |Linkage: Integral linkage
- [Us] rated supply voltage : 24 V AC~~
- Actuator Product Range : SpaceLogic
- Actuator Product Series : MG350V
- Actuator Type : Electric
- Additional Features : LED Status Indicator
- Auxiliary Switch : No
- Body Size : 20 mm (3/4 in)
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 47
- Conduit Connection : 1/2 in
- Configuration : 3-Way Mixing
- Connection Type : NPT
- Control Signal : Floating
- Current Consumption : 5 A
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Flow Characteristic : Linear
- Flow Coefficient : 6.49 kvs
- Flow Coefficient : 7.5 cv
- Force lbf : 78 lbf
- Force N : 347 N
- Global warming ; Total life cycle? : 47 kg CO2 eq.
- Humidity : 5…95 % non-condensing
- IP Protection Rating : IP11
- Leads and Connections : Terminal Block
- Loss of Power Position : Fail in place
- Loss of Power Type : Non-Spring Return
- Manufacturer : Schneider Electric
- Material : EPDM: O-rings
- Material : Polycarbonate: housing
- Material : Reinforced teflon: seal
- Material Body : Bronze
- Material Plug : Brass
- Material Trim : Brass
- Mechanical Movement : Linear
- Media Compatibility : Glycol 25 %
- Media Compatibility : Glycol 30 %
- Media Compatibility : Glycol 50 %
- Media Compatibility : Glycol 60 %
- Media Compatibility : Water
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Packing Material : Spring-Loaded PTFE/EPDM
- Pipe Size : 3/4 in
- Position Indicator : Stroke Indicator On Bracket
- Power Consumption Running VA : 5 VA AC
- Pressure Allowable Static : 400 psig up to 150 °F decreasing to 321 psig at 281 °F
- Pressure Class : 250 ANSI
- Pressure Fluid Max Delta P Normal Life : 87 psi (599.8 kPa)
- Product Destination : globe valve
- Product Or Component Type : Valve-actuator assembly
- Rangeability : 100:1 port A
- Seat Leakage : Port A: Class IV (0.01 %)
- Seat Leakage : Port A: Class V
- Seat Leakage : Port B: Class III (0.1 %)
- Seat Material : Port A: bronze
- Seat Material : Port B: bronze
- Seating Seal Material : Port B:metal to metal
- Seating Seal Material : PTFE
- Selection Tools : Valve Selection Tool
- Stem Flow Action : Stem Down Flow A to AB
- Stem Movement : Linear
- Stroke Distance : 0.6 in
- Stroke Distance : 16.5 mm
- Stroke Distance : 7/16 in
- Stroke Running Time : 102 s
- Take-back : No
- Temperature Ambient Operating Range : 23…131 °F (-5…55 °C)
- Temperature Range Fluid : 19…280 °F (-7…138 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Valve Product Range : Venta
- Valve Product Series : VB-7300
- Valve Type : Globe
