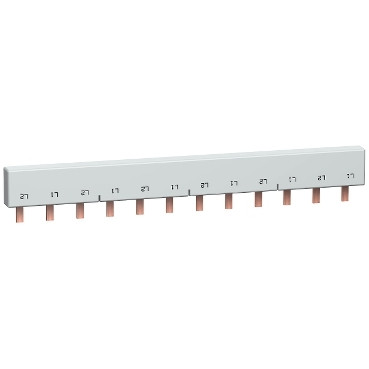

This Multi9 connection accessory is a horizontal insulated cuttable comb busbar. It has a width of 12 modules of 18mm. It is dedicated to (Line) installations. The distribution type is (L1, L2, L3). It is suitable for 4 devices with a 3P pole description. The distance between way is 54mm.
- Range : Multi9
- Product or Component Type : Comb busbar
- Mounting Mode : Horizontal
- Accessory / separate part category : Connection accessory
- Lines description : 3L
- Length in 18 mm modules : 12
- Number of ways : 4 ways 3 L
- Poles configuration for 1 way : 1 x 3P
- Connection pitch : 0.71 in (18 mm)
- Connector type : tooth
- Distance between way : 2.13 in (54 mm)
- Marking : L1 L2 L3
- insulation : Insulated
- device presentation : Uncuttable
- [Ie] rated operational current : 100 A 104 °F (40 °C)
- [Ue] rated operational voltage : 277 V AC Ph/N, 480 V AC Ph/Ph
- [Ui] rated insulation voltage : 690 V AC
- [Uimp] rated impulse withstand voltage : 12 kV
- Mounting location : Top tunnel type terminals
- 9 mm pitches : 24
- Width : 8.50 in (216 mm)
- color : Light gray RAL 7035)
- Range compatibility : Multi9 Multi9 C60SP
- Standards : IEC 60947-2, GB 14048.2, UL 1077
- Fire resistance : 1760 °F (960 °C) 30 s )
- Category : US10DE200908
- Discount Schedule : 0DE2
- GTIN : 3303430102878
- Returnability : Yes
- Country of origin : DE
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 0.51 in (1.3 cm)
- Package 1 Width : 2.17 in (5.5 cm)
- Package 1 Length : 8.66 in (22.0 cm)
- Package 1 Weight : 3.81 oz (108.0 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 72
- Package 2 Height : 5.91 in (15.0 cm)
- Package 2 Width : 11.81 in (30.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 17.86 lb(US) (8.102 kg)
- Warranty : 18 months
