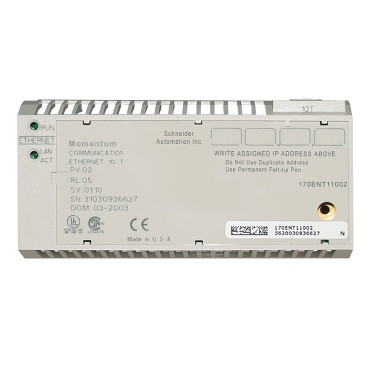

MOMENTUM ETHERNET COMM ADAPTER
- Range of Product : Modicon Momentum automation platform
- Product or Component Type : Ethernet TCP/IP communication adaptor
- communication port protocol : Ethernet TCP/IP
- Method of access : Peer to peer, Master/slave
- Transmission Rate : 10 Mbit/s
- Transmission support medium : Shielded twisted pairs cable
- Module configuration : BOOTP server to assign IP parameters
- Topology : Multidrop, star network
- Port Ethernet : 10BASE-T
- Number of devices per segment : 0…32
- Maximum cable distance between devices : 3280.84 ft (1000 m) without repeater
- Addressing : Unique IEEE global address, IP address user assigned
- Fail state : Fail safe
- Control parameter : CRC-32
- supply : From I/O base
- Marking : CE
- Electrical connection : 1 connector RJ45 for 10BASE-TX
- Net Weight : 0.15 lb(US) (0.07 kg)
- Product Certifications : UL, FM Class 1 Division 2, CSA
- Standards : CSA, FM Class 1 Division 2
- IP Degree of Protection : IP20
- Protective treatment : TC
- Resistance to electrostatic discharge : 4 kV contact IEC 801-2, 8 kV on air IEC 801-2
- Resistance to electromagnetic fields : 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3
- Ambient Air Temperature for Operation : 32…140 °F (0…60 °C)
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Relative Humidity : 95 % without condensation
- Operating altitude : <= 16404.2 ft (5000 m)
- Category : US1PC3118206
- Discount Schedule : PC31
- GTIN : 3595862065054
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.28 in (5.800 cm)
- Package 1 Width : 7.01 in (17.800 cm)
- Package 1 Length : 10.24 in (26.000 cm)
- Package 1 Weight : 7.72 oz (219.000 g)
- Unit Type of Package 2 : S03
- Number of Units in Package 2 : 8
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Width : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 4.85 lb(US) (2.200 kg)
- Warranty : 18 months
