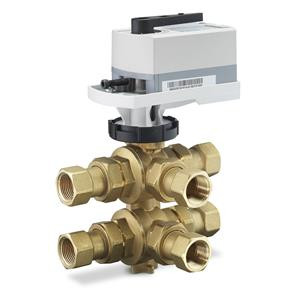

171C-10601-4.0-1.2 - 6W ball valve 3/4", A=4.0Cv, B=1.2Cv, 58psi close-off, NPT Union Internal Thread, 0-10V NSR
- Source A, Cv : 4
- Source B, Cv : 1.2
- Valve Type : Six-way
- Valve Body Style : Rotary-Ball
- Port Configuration : 6-Way Changeover
- End Connection : NPT Union Internal Thread
- Connecting thread : 3/4 inch NPT
- Material, valve body : Brass
- Medium : Water , Water with anti-freeze
- Leakage rate : 0%
- Permissible operating pressure : 29 psi
- Medium temperature : 35…250 ºF
- Valve Actuator Type : Electronic
- Actuation Style : Rotary
- Supply Voltage : 24 VAC
- Positioning time : 90 s
- Power consumption : 3.3 VA
- Auxiliary Switch : No
- Dimensions (W x H x D) : 6.63 x 9.5 x 4.25 in
