171D-10326

$336.55
(No reviews yet) Write a Review
SKU:
171D-10326
Adding to cart… The item has been added

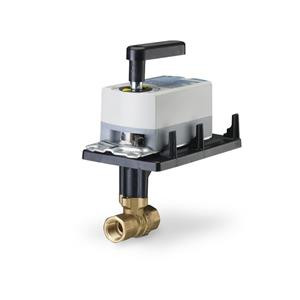

171D-10326 - 2W 1-1/2", 160Cv ball valve assembly, chrome-plat brass ball, brass stem, 0-10V NSR, full-port valve without flow characterizer insert
Flow Coefficient, Cv :
160
Valve Type :
Two-way
Valve Body Style :
Rotary-Ball
Port Configuration :
2-Way Normally open
End Connection :
NPT
Material, valve body :
Brass
Material, inside set :
Ball: Chrome-plated brass , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Brass , Stem Seals: EPDM O-rings
Medium :
Water , Water with anti-freeze
Leakage rate :
ANSI Class IV
Leakage rate, class :
ANSI Class IV
Medium temperature :
35…250 ºF
Valve Actuator Type :
Electronic
Actuation Style :
Rotary
Supply Voltage :
24 VAC
Auxiliary Switch :
No
Dimensions (W x H x D) :
7.06 x 9.25 x 5.38 in
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c44973_599%2520Series%25202-way%2520Ball%2520Valves%2520Submittal%2520Sheet_en.pdf&EXT=.pdf&SID=44973&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45140_599%2520Series%25202-Way%2520Ball%2520Valves%2520Technical%2520Instruction_en.pdf&EXT=.pdf&SID=45140&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c44973_599%2520Series%25202-way%2520Ball%2520Valves%2520Submittal%2520Sheet_en.pdf&EXT=.pdf&SID=44973&KEY=3&DTP=DataSheetForValve
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V101009629_GDEGLB%2520OpenAir%2520Electronic%2520Damper%2520Actuators%2520GLB%2520Ser_en.pdf&EXT=.pdf&SID=A6V101009629&KEY=3&DTP=DataSheetForActuator
