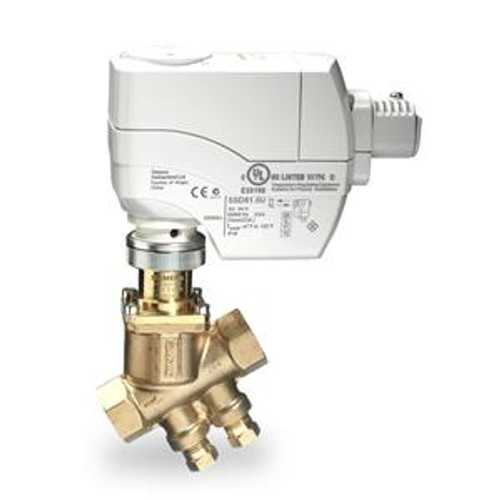

232-04323-4 1 PICV 4 GPM + 3P SR NO
- EAN : Not available
- UPC : Not available
- Commodity Code : 8481809020
- LKZ_FDB/ CatalogID : BT_Catalog
- Product Group : QBC8
- Group Code : H5CC
- Country of origin : United States of America
- RoHS Compliance : Since: 08-22-18
- WEEE (2012/19/EU) Take-Back Obligation : No
- Technical specifications:Valve Size : 1 in
- Valve Type : Two-way
- Valve Body Style : Stroke-Globe
- End Connection : NPT
- Material, valve body : Brass
- Trim Material : Brass
- Material, inside set : Plug: Brass; Stem: Stainless Steel; Seals: EPDM O-ring
- Flow Characteristic : Linear
- Medium : Water; Water with anti-freeze
- Pressure Class : ANSI 250
- Leakage rate : ANSI Class IV (0.01%) @ 100 psi
- Rangeability : ≥ 100:1
- Stroke : 1/5 in
- Close-off Pressure : 100 psi
- Actuation Style : Linear
- Normally Open/Normally Closed : Normally Open
- Control Signal : Floating control
- Fail Safe : Yes
- Supply Voltage : 24 VAC
- Positioning time : 125 s
- Power consumption : 2 VA
- Warranty : 5 Years
