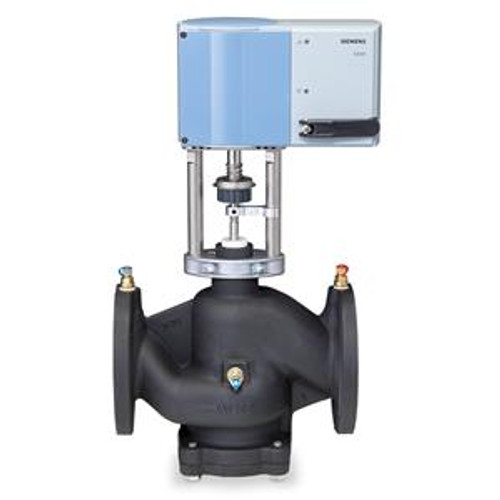

238-07337 - PICV, 4 inch, ANSI 250, 370 GPM max flow, w/ 3 P/T ports, SQV Actuator, Normally Open, SR
- Valve Size : 4 in
- Valve Type : Two-way
- Port Configuration : 2-Way Normally open
- End Connection : Flanged
- Material, valve body : Cast Iron
- Trim Material : Brass
- Flow Characteristic : Linear
- Medium : Water , Water with anti-freeze
- Max GPM : 370 gpm
- Min GPM : 64 gpm
- Preset GPM : 370 gpm
- Pressure Class : ANSI 250
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : = 100:1
- Max. Inlet Pressure (absolute), Liquid : 200 psi
- Max. Differential Pressure, Liquid : 90 psi
- Medium temperature : 34…250 ºF
- Stroke : 1-1/2 in., 40 mm
- Close-off Pressure : 100 psi
- Valve Actuator Type : Electronic
- Actuation Style : Linear
- Normally Open/Normally Closed : Normally Open
- Control Signal : Floating control , 0...10 V
- Fail Safe : Yes
- Supply Voltage : 24 VAC/DC
- Positioning time : 80 s
- Power consumption : 20 VA
- Position feedback : Yes
- Positioning signal : 3-position, 0...10 V DC, 4…20 mA
- Dimensions (W x H x D) : 14.4 x 25.91 x 10 in
