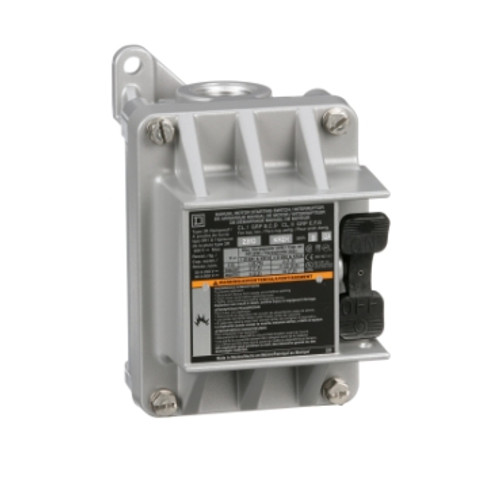

2510K manual motor switches are designed for manual On Off control for small motors. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 7&9 hazardous location enclosure. A 3/4 inch conduit opening is on the bottom of the enclosure. Enclosure as a provision to allow padlocking of this device. 2510K manual switches are UL listed and CSA certified. This switch has no pilot light indicator. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. Enclosure is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. This device is UL Listed and CSA certified.
- Product : Single Unit Manual Switch
- Type : K
- Current Rating : 20 A
- Cable Entry : 0.75 NPT (bottom)
- Maximum Voltage Rating : 600 V AC, 230 V DC
- Number of Poles : 3P
- Control Unit Type : Toggle
- Number of Phases : 3 phase
- Pilot Light : No indicator
- Starter Type : Non reversing
- Electrical Connection : Screw clamp terminals
- Wire Gauge : AWG 14...AWG 10 copper
- Height : 6.36 in (161.54 mm)
- Width : 3.95 in (100.33 mm)
- Depth : 4.35 in (110.49 mm)
- Certifications : UL listed file E58760 CCN NPXZ, CSA LR26817 class 3218 04
- NEMA Enclosure Rating : NEMA 3R/7/9 Cast Aluminium standard size
- Category : US10CP121102
- Discount Schedule : 0CP1
- GTIN : 785901077725
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 4.69 in (11.9 cm)
- Package 1 Width : 5.59 in (14.2 cm)
- Package 1 Length : 7.01 in (17.8 cm)
- Package 1 Weight : 3.51 lb(US) (1.59 kg)
- Warranty : 18 months
