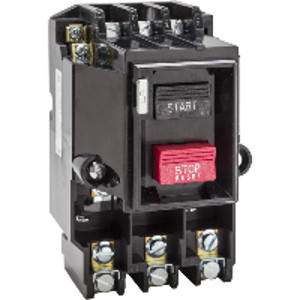

Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. This manual motor starter is not supplied with an enclosure. This manual starter is 5.72 inches tall, 3.50 inches wide and 4.03 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
- Product : Manual Starter
- Type : M
- NEMA Size : M-0
- Control Unit : Push-button
- Pilot Light : No indicator
- Horsepower Rating : 3 hp 200...230 V AC, 3 phase, 5 hp 380...575 V AC, 3 phase
- Voltage Rating : 600 V AC
- Number of Poles : 3P
- Starter Type : Non reversing
- Electrical Connection : Pressure wire clamp
- Overload Relay Type : Melting alloy
- Number of Thermal Units Required : 3
- Wire Gauge : AWG 14...AWG 8 copper
- Auxiliary Contacts : Without
- Height : 5.72 in (145.29 mm)
- Width : 3.5 in (88.90 mm)
- Depth : 4.03 in (102.36 mm)
- Certifications : UL listed file E42243 CCN NLRV, CSA LR60905 class 3211 05
- NEMA Enclosure Rating : Not rated (open device)
- Category : US10CP121103
- Discount Schedule : 0CP1
- GTIN : 785901792833
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.12 in (13.0 cm)
- Package 1 Width : 6.50 in (16.5 cm)
- Package 1 Length : 8.70 in (22.1 cm)
- Package 1 Weight : 35.04 oz (993.4 g)
- Warranty : 18 months
