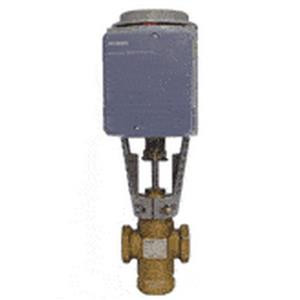

267-03149 - Valve assy 3W Mix 1" 10Cv Eq Pct/Lin SS Trim Internal Thread x Internal Thread, Prop El-Hydraul Act NSR
- Valve Body Style : Stroke-Globe
- End Connection : Internal Thread x Internal Thread
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : UNS CA 844 bronze
- Medium : Water , Water with anti-freeze
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : >100:1
- High temperature : NO
- Port Configuration : 3-Way Mixing
- Medium temperature : 20…250 ºF
- Stroke : 3/4 in
- Valve Actuator Type : Electronic
- Supply Voltage : 24 VAC
- Positioning time : Power stroke 30 s, Return stroke 15 s
- Power consumption : 18 VA
