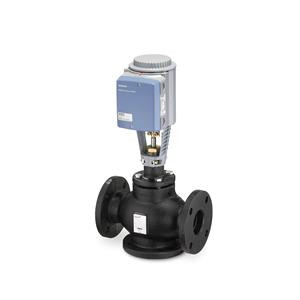

267-06161 - Valve assy 3W Mix 3" 100Cv Eq Pct/Lin Brass Trim Flanged Prop El-Hydrl Act NSR
- Valve Body Style : Stroke-Globe
- End Connection : Flanged
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : Cast iron ASTM A126 Class B
- Material, inside set : Body Trim: Bronze; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring
- Medium : Water , Water with anti-freeze
- Leakage rate : Class IV (0…0.01% of volumetric flow)
- Leakage rate, class : Class IV (0…0.01% of volumetric flow)
- Rangeability : 100:1
- High temperature : NO
- Port Configuration : 3-Way Mixing
- Medium temperature : 20…250 ºF
- Stroke : 20 mm, 0.75 " mm
- Stroke, inch : 0.75 "
- Stroke, mm : 20 mm
- Valve Actuator Type : Electronic
- Supply Voltage : 24 VAC
- Positioning time : Open:30 s, Close:15 s
- Power consumption : 17 VA
