Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

270-03199

$300.07
(No reviews yet) Write a Review
SKU:
270-03199
Adding to cart… The item has been added

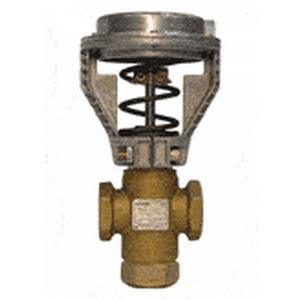

270-03199 - Valve asy 3W Mix 1/2" 1.6Cv Eq Pct/Lin Brass Trim Internal Thread x Internal Thread 4" Pneu Act 10-15psi
Valve Body Style :
Stroke-Globe
Port Configuration :
3-Way Mixing
End Connection :
Internal Thread x Internal Thread
Connecting thread :
Direct-coupled universal bonnet
Material, valve body :
UNS CA 844 bronze
Material, inside set :
Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium :
Water , Water with anti-freeze
Leakage rate :
Class IV (0.01% of Cv)
Rangeability :
>100:1
High temperature :
NO
Medium temperature :
20…250 ºF
Stroke :
3/4 in., 20 mm
Valve Actuator Type :
Pneumatic
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45082_Flowrite%2520599%2520Series%25203-way%2520Valves%25201_2%2520to%25202-Inch%2520Bro_en.pdf&EXT=.pdf&SID=45082&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10213565_Flowrite%2520AP%2520599%2520Series%25204-Inch%2520Pneumatic%2520Valve%2520Tech_en.pdf&EXT=.pdf&SID=A6V10213565&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10305769_Flowrite%2520Valve%2520and%2520Selection%2520TB%2520255%2520Technical%2520Bul_en.pdf&EXT=.pdf&SID=A6V10305769&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10213565_Flowrite%2520AP%2520599%2520Series%25204-Inch%2520Pneumatic%2520Valve%2520Tech_en.pdf&EXT=.pdf&SID=A6V10213565&KEY=3&DTP=DataSheetForActuator
