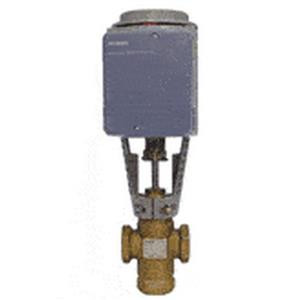

274-03203 - Valve assy 3W Mix 1" 10Cv Eq Prcent/Lin Brass Trim Internal Thread x Internal Thread, Prop El-Hydraul, SR
- Valve Body Style : Stroke-Globe
- End Connection : Internal Thread x Internal Thread
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : UNS CA 844 bronze
- Medium : Water , Water with anti-freeze
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : >100:1
- High temperature : NO
- Port Configuration : 3-Way Mixing
- Medium temperature : 20…250 ºF
- Ambient temperature, operation : 5 to 130 °F, -15 to 55 °C
- Stroke : 3/4 in., 20 mm
- Valve Actuator Type : Electronic
- Supply Voltage : 24 VAC
- Positioning time : Power stroke 30 sec, Return stroke 15 sec
- Power consumption : 18 VA
