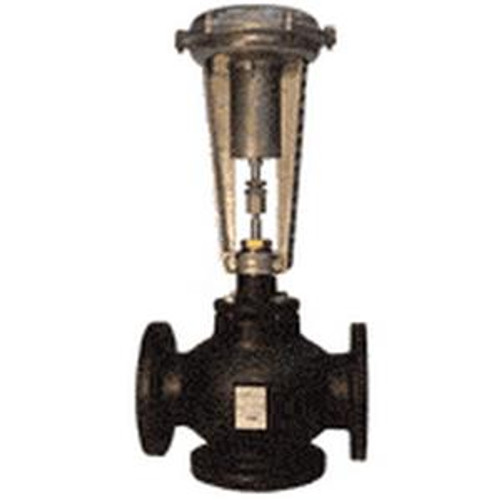

277-06165 - Valve assy 3W Mix 2-1/2" 63Cv Eq Pct/Lin SS Trim Flanged 8" Pneu Act
- Valve Body Style : Stroke-Globe
- Port Configuration : 3-Way Mixing
- End Connection : Flanged
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : Cast iron ASTM A126 Class B
- Material, inside set : Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
- Medium : Water , Water with anti-freeze
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : >100:1
- High temperature : NO
- Medium temperature : 20…250 ºF
- Stroke : 3/4 in., 20 mm
- Valve Actuator Type : Pneumatic
