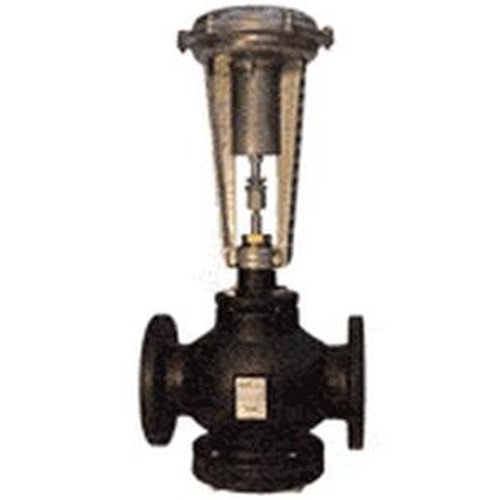

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

278-06041

$1,605.01
(No reviews yet) Write a Review
SKU:
278-06041
Adding to cart… The item has been added
278-06041 - Valve assy Hi Temp 2W NO 3" 100Cv Lin SS Trim Flng 8" Pneu Act
Valve Body Style :
Stroke-Globe
Port Configuration :
2-Way Normally open
End Connection :
Flanged
Connecting thread :
Direct-coupled universal bonnet
Material, valve body :
Cast iron ASTM A126 Class B
Material, inside set :
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium :
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate :
Class IV (0.01% of Cv)
Rangeability :
>100:1
High temperature :
YES
Medium temperature :
20…337 ºF
Stroke :
3/4 in., 20 mm
Valve Actuator Type :
Pneumatic
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45064_Flowrite%2520VF%2520599%2520Series%2520Two-Way%2520Valves%25202-1_2%2520to%25206-i_en.pdf&EXT=.pdf&SID=45064&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45066_Flowrite%2520AP%2520599%2520Series%25208-Inch%2520Pneumatic%2520Valve%2520Tech_en.pdf&EXT=.pdf&SID=45066&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10305771_Flowrite%25202-1_2%2520to%25206-Inch%2520Valves%2520Two-Way%2520and%2520Three_en.pdf&EXT=.pdf&SID=A6V10305771&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45066_Flowrite%2520AP%2520599%2520Series%25208-Inch%2520Pneumatic%2520Valve%2520Tech_en.pdf&EXT=.pdf&SID=45066&KEY=3&DTP=DataSheetForActuator
