zoom

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

283-06625

$1,868.27
(No reviews yet) Write a Review
SKU:
283-06625
Adding to cart… The item has been added

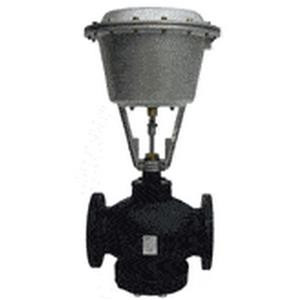

283-06625 - Valve asy Hi Pr Close-off 2W NC 2-1/2" 63Cv Eq Pct SS Flange ANSI 250, 8" Pneu
Valve Body Style :
Stroke-Globe
Port Configuration :
2-Way Normally closed
End Connection :
Flanged
Connecting thread :
Direct-coupled universal bonnet
Material, valve body :
Cast iron ASTM A126 Class B
Material, inside set :
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium :
Water , Water with anti-freeze
Leakage rate :
Class IV (0.01% of Cv)
Rangeability :
>100:1
High temperature :
NO
Medium temperature :
20…250 ºF
Stroke :
3/4 in
Valve Actuator Type :
Pneumatic
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45077_Flowrite%2520SKD%2520Valve%2520Proportional%2520Control%2520Technical%2520_en.pdf&EXT=.pdf&SID=45077&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10254823_Flowrite%2520High%2520Pressure%2520Close%2520off%2520Valves%25202-1_2%2520to%25206_en.pdf&EXT=.pdf&SID=A6V10254823&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10254834_Flowrite%2520599%2520Series%2520High%2520Pressure%2520Close-Off%25202-Way%2520_en.pdf&EXT=.pdf&SID=A6V10254834&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10305771_Flowrite%25202-1_2%2520to%25206-Inch%2520Valves%2520Two-Way%2520and%2520Three_en.pdf&EXT=.pdf&SID=A6V10305771&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45066_Flowrite%2520AP%2520599%2520Series%25208-Inch%2520Pneumatic%2520Valve%2520Tech_en.pdf&EXT=.pdf&SID=45066&KEY=3&DTP=DataSheetForActuator
