287-05973

$3,523.26
(No reviews yet) Write a Review
SKU:
287-05973
Adding to cart… The item has been added

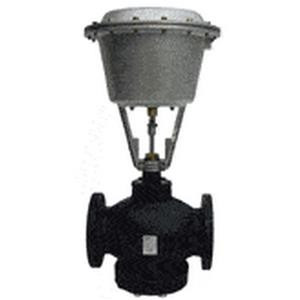

287-05973 - Valve assy 2W NC 5", 250Cv, Eq Pct SS Trim Flanged 12" Pneu Act w/ pos
Valve Body Style :
Stroke-Globe
Port Configuration :
2-Way Normally closed
End Connection :
Flanged
Connecting thread :
Direct-coupled universal bonnet
Material, valve body :
Cast iron ASTM A126 Class B
Material, inside set :
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium :
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate :
Class IV (0.01% of Cv)
Rangeability :
>100:1
High temperature :
NO
Medium temperature :
20…250 ºF
Stroke :
1-1/2 in., 40 mm
Valve Actuator Type :
Pneumatic
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45064_Flowrite%2520VF%2520599%2520Series%2520Two-Way%2520Valves%25202-1_2%2520to%25206-i_en.pdf&EXT=.pdf&SID=45064&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45067_Flowrite%2520AP%2520599%2520Series%252012-inch%2520PneumaticValve%2520Tech_en.pdf&EXT=.pdf&SID=45067&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10305771_Flowrite%25202-1_2%2520to%25206-Inch%2520Valves%2520Two-Way%2520and%2520Three_en.pdf&EXT=.pdf&SID=A6V10305771&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45067_Flowrite%2520AP%2520599%2520Series%252012-inch%2520PneumaticValve%2520Tech_en.pdf&EXT=.pdf&SID=45067&KEY=3&DTP=DataSheetForActuator
