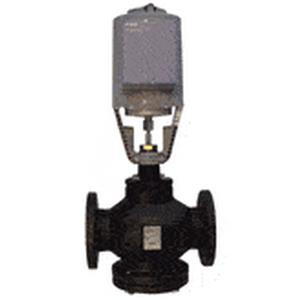

292-06144 - Valve assy 2W NO, 6" 400Cv Lin SS Trim Flanged float El-Hydraul Act SR
- Valve Body Style : Stroke-Globe
- End Connection : Flanged
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : Cast iron ASTM A126 Class B
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : >100:1
- High temperature : NO
- Port Configuration : 2-Way Normally open
- Medium temperature : 20…250 ºF
- Ambient temperature, operation : 5 to 130 °F, -15 to 55 °C
- Stroke : 1-1/2 in., 40 mm
- Valve Actuator Type : Electronic
- Supply Voltage : 24 VAC
- Positioning time : Power stroke 120 sec, Return stroke 120 sec, Spring return 18 sec
- Power consumption : 24 VA
