293-05972

$3,027.22
(No reviews yet) Write a Review
SKU:
293-05972
Adding to cart… The item has been added

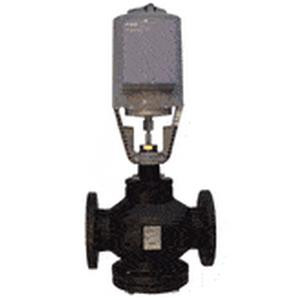

293-05972 - Valve assy 2W NC 4", 160Cv, Eq Pct SS Trim Flanged float El-Hydraul Act NSR
Valve Body Style :
Stroke-Globe
End Connection :
Flanged
Connecting thread :
Direct-coupled universal bonnet
Material, valve body :
Cast iron ASTM A126 Class B
Material, inside set :
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium :
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate :
Class IV (0.01% of Cv)
Rangeability :
>100:1
High temperature :
NO
Port Configuration :
2-Way Normally closed
Medium temperature :
20…250 ºF
Ambient temperature, operation :
5 to 130 °F, -15 to 55 °C
Stroke :
1-1/2 in., 40 mm
Valve Actuator Type :
Electronic
Supply Voltage :
24 VAC
Positioning time :
Run time 120 sec
Power consumption :
19 VA
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45064_Flowrite%2520VF%2520599%2520Series%2520Two-Way%2520Valves%25202-1_2%2520to%25206-i_en.pdf&EXT=.pdf&SID=45064&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45070_Flowrite%2520EA%2520599%2520Series%2520SKB%2520_%2520SKC%2520Electronic%2520Valve%2520_en.pdf&EXT=.pdf&SID=45070&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10305771_Flowrite%25202-1_2%2520to%25206-Inch%2520Valves%2520Two-Way%2520and%2520Three_en.pdf&EXT=.pdf&SID=A6V10305771&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c20497_Electrohydraulic%2520actuators%2520SKC.._en.pdf&EXT=.pdf&SID=20497&KEY=3&DTP=DataSheetForActuator
