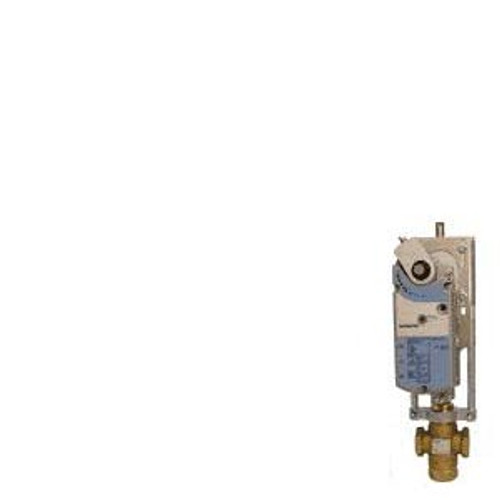

298-03202 - Valve asy 3W Mix 3/4" 6.3Cv Eq Pct/Lin Brass Trim Internal Thread x Internal Thread 0-10 Vdc Mod Elect Act SR
- Valve Type : Three-way
- Valve Body Style : Stroke-Globe
- Port Configuration : 3-Way Mixing
- End Connection : Internal Thread x Internal Thread
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : UNS CA 844 bronze
- Medium : Water , Water with anti-freeze
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : >100:1
- High temperature : NO
- Medium temperature : 20…250 ºF
- Ambient temperature, operation : -25 to 130°F, -32 to 55°C
- Stroke : 3/4 in., 20 mm
- Valve Actuator Type : Electronic
- Supply Voltage : 24 VAC
- Power consumption : 9 VA running, 5 VA holding
