364-02074

$317.84
(No reviews yet) Write a Review
SKU:
364-02074
Adding to cart… The item has been added

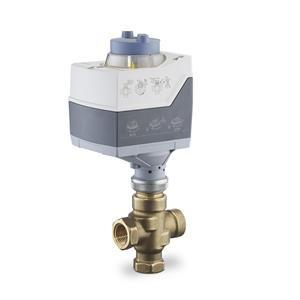

364-02074 - MT Series 3W Valve assy ANSI 250 Mix Linear 1/2" Internal Thread x Internal Thread 1Cv 24V 0-10V/4-20mA NSR
Valve Type :
Three-way
Valve Body Style :
Stroke-Globe
Port Configuration :
3-Way Mixing
End Connection :
NPT
Connecting thread :
Direct-coupled universal bonnet
Material, valve body :
Brass
Material, inside set :
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
Leakage rate :
Class IV (0.01% of Cv)
Permissible operating pressure :
Max. differential pressure for modulating service: 50 psi (345 kPa)
Medium temperature :
35…250 ºF
Stroke :
7/32 in
Valve Actuator Type :
Electronic
Supply Voltage :
24 VAC
Positioning time :
30 s
Power consumption :
5.3 VA
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c44967_Flowrite%2520VF%2520599%2520series%2520Valves%25202-1_2%2520to%25206-Inch%2520Fl_en.pdf&EXT=.pdf&SID=44967&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45092_Powermite%2520599%2520Series%2520MT%2520Series%2520Terminal%2520Unit%2520Three_en.pdf&EXT=.pdf&SID=45092&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10811330_Powermie%2520599%2520MT%2520Series%2520SAS%2520Electronic%2520Valve%2520Actuat_en.pdf&EXT=.pdf&SID=A6V10811330&KEY=3&DTP=Data+Sheet+for+Product
