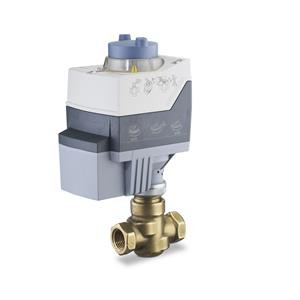

366-02060 - MT Series 2W Valve assy ANSI 250 NO Mod Eq Pct 1/2", Angle Internal Thread x Union External Thread, 4Cv 24V float SR
- Valve Type : Two-way
- Valve Body Style : Stroke-Globe
- Port Configuration : 2-Way Normally open
- End Connection : Angle Internal Thread x Union External Thread
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : Brass
- Leakage rate : Class IV (0.01% of Cv)
- Permissible operating pressure : Max. differential pressure for modulating service: Liquid=50 psi (345 kPa); Steam=15 psi (103 kPa)
- Medium temperature : 35…250 ºF
- Stroke : 7/32 in
- Valve Actuator Type : Electronic
- Normally Open/Normally Closed : Normally Open
- Supply Voltage : 24 VAC
- Positioning time : 30 s
- Power consumption : 3.4 VA
