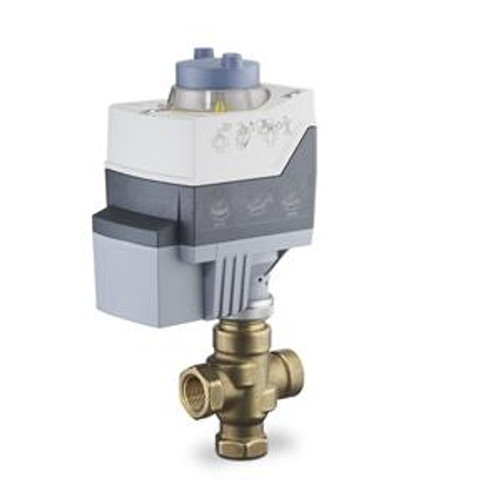

366-02067 - MT Series 3W Valve assy ANSI 250 Mix Linear 1/2" Internal Thread x Internal Thread 1.6Cv 24V float SR
- Valve Type : Three-way
- Valve Body Style : Stroke-Globe
- Port Configuration : 3-Way Mixing
- End Connection : NPT
- Connecting thread : Direct-coupled universal bonnet
- Material, valve body : Brass
- Leakage rate : Class IV (0.01% of Cv)
- Permissible operating pressure : Max. differential pressure for modulating service: 25 psi (173 kPa)
- Medium temperature : 35…250 ºF
- Stroke : 7/32 in
- Valve Actuator Type : Electronic
- Supply Voltage : 24 VAC
- Positioning time : 30 s
- Power consumption : 3.4 VA
