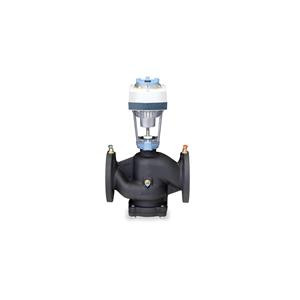

371-07330

Valve Size :

2.5 in

Port Configuration :

2-Way Normally open

End Connection :

Flanged

Material, valve body :

Cast Iron

Trim Material :

Brass

Material, inside set :

Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)

Flow Characteristic :

Linear

Medium :

Water , Water with anti-freeze

Max GPM :

132 gpm

Min GPM :

21 gpm

Preset GPM :

132 gpm

Pressure Class :

ANSI 125

Max. Inlet Pressure (absolute), Liquid :

200 psi

Max. Differential Pressure, Liquid :

90 psi

Medium temperature :

34…250 ºF

Stroke :

3/4 in., 20 mm

Close-off Pressure :

100 psi

Valve Actuator Type :

Electronic

Actuation Style :

Linear

Control Signal :

0...10 Vdc

Fail Safe :

No

Positioning time :

30 s

Power consumption :

8 VA

Positioning signal :

0...10 V DC, 4…20 mA

Dimensions (W x H x D) :

10.87 x 21.5 x 7.01 in

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10335337_SAX%2520Electronic%2520Valve%2520Actuator%2520Non%2520Spring%2520Return%25202_en.pdf&EXT=.pdf&SID=A6V10335337&KEY=3&DTP=Data+Sheet+for+Product

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10391420_Pressure%2520Independent%2520Control%2520Series%25202-Way%2520Flanged%2520_en.pdf&EXT=.pdf&SID=A6V10391420&KEY=3&DTP=Data+Sheet+for+Product

Datasheet :

https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10391438_Pressure%2520Independent%2520Control%2520Series%2520Two-Way%2520Cast%2520_en.pdf&EXT=.pdf&SID=A6V10391438&KEY=3&DTP=Data+Sheet+for+Product
