373-03206

$893.01
(No reviews yet) Write a Review
SKU:
373-03206
Adding to cart… The item has been added

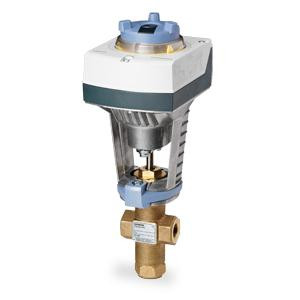

373-03206 - Valve assy 3W Mix 2" 40Cv Eq Pct/Lin Brass Trim Internal Thread x Internal Thread, float Elect Act NSR
Valve Type :
Three-way
Valve Body Style :
Stroke-Globe
Port Configuration :
3-Way Mixing
End Connection :
Internal Thread x Internal Thread
Connecting thread :
Direct-coupled universal bonnet
Material, valve body :
UNS CA 844 bronze
Material, inside set :
Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium :
Water , Water with anti-freeze
Leakage rate :
Class IV (0.01% of Cv)
High temperature :
NO
Medium temperature :
20…250 ºF
Valve Actuator Type :
Electronic
Supply Voltage :
24 VAC
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c44966_3-Way%25201_2-2-Inch%2520Valve%2520ANSI%2520Class%2520Bronze%2520Body%2520Subm_en.pdf&EXT=.pdf&SID=44966&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45082_Flowrite%2520599%2520Series%25203-way%2520Valves%25201_2%2520to%25202-Inch%2520Bro_en.pdf&EXT=.pdf&SID=45082&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10305769_Flowrite%2520Valve%2520and%2520Selection%2520TB%2520255%2520Technical%2520Bul_en.pdf&EXT=.pdf&SID=A6V10305769&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10335350_SAX%2520Electronic%2520Valve%2520Actuator%2520Non%2520Spring%2520Return%25202_en.pdf&EXT=.pdf&SID=A6V10335350&KEY=3&DTP=Data+Sheet+for+Product
