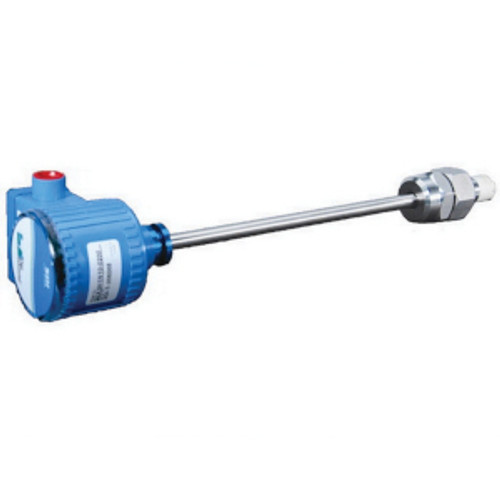

Schneider Electric BGR-8SDI0H1N10-0200

4 to 20 mA Hot Tap Insert Liquid Flow Sensor with Stainless Steel/PPS Plastic Tip, 1-1/2 to 10 in

• Application : Flow
• Display Type : None
• Field Programmable : Yes
• Fitting Material : Stainless Steel, Polymer
• Fitting Size : 1.5 to 10 In
• Flow Measurement Accuracy : ±2%
• Flow Measurement Range : 1 - 20 ft/s (0.3 - 6 m/s)
• Flow Measurement Repeatability : ±0.5%
• Flow Sensor Type : Impeller
• Hot-Tap Option : Yes
• Measurement Type : Flow
• Medium : Water based liquids
• Operating Fluid Temperature : 14 - 150 °F (-10 - 65 °C)
• Operating Temperature : 14 - 150 °F (-10 - 65 °C)
• Output Specifications : Scaled Pulse
• Outputs : Pulse output
• Pipe Material : Copper, Polymer, Steel, Stainless Steel
• Product Type : Sensor
• Range : SDI Series

Brand: Schneider Electric

SKU: BGR-8SDI0H1N10-0200

Product Literature:

• Download product literature
