599-03205

$415.46
(No reviews yet) Write a Review
SKU:
599-03205
Adding to cart… The item has been added

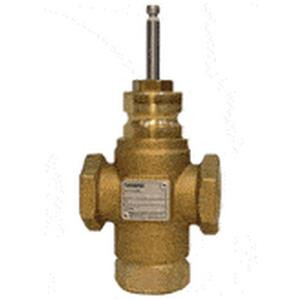

599-03205 - Flowrite 3-Way Valve 1 1/2"(40mm) line size, 25 Cv, Brass Trim, Internal Thread x Internal Thread, ANSI 250
Valve Body Style :
Stroke-Globe
Port Configuration :
3-Way Mixing
End Connection :
Internal Thread x Internal Thread
Connecting thread :
NPT, direct-coupled universal bonnet
Material, valve body :
UNS CA 844 bronze
Material, inside set :
Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium :
Water , Water with anti-freeze
DN :
40
Leakage rate :
Class IV (0.01% of Cv)
Rangeability :
>100:1
Medium temperature :
20…250 ºF
Stroke :
3/4 in., 20 mm
Dimensions (W x H x D) :
5.12 x 6.3 x 2.28 in
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c44966_3-Way%25201_2-2-Inch%2520Valve%2520ANSI%2520Class%2520Bronze%2520Body%2520Subm_en.pdf&EXT=.pdf&SID=44966&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45082_Flowrite%2520599%2520Series%25203-way%2520Valves%25201_2%2520to%25202-Inch%2520Bro_en.pdf&EXT=.pdf&SID=45082&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10305769_Flowrite%2520Valve%2520and%2520Selection%2520TB%2520255%2520Technical%2520Bul_en.pdf&EXT=.pdf&SID=A6V10305769&KEY=3&DTP=Data+Sheet+for+Product
