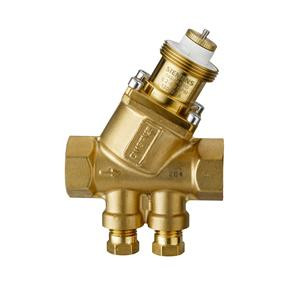

599-04314-18 - PICV, 1-1/4 inch, Normally Open, 18 GPM max. flow preset
- Valve Body Style : Stroke-Globe
- Port Configuration : 2-Way Normally open
- End Connection : NPT
- Connecting thread : Internal NPT thread
- Material, valve body : Brass
- Material, inside set : Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
- Medium : Water , Water with anti-freeze
- Max GPM : 18 gpm
- DN : 32
- Min GPM : 3 gpm
- Preset GPM : 18 gpm
- Leakage rate : ANSI Class IV (0.01%)
- Rangeability : = 100:1
- Medium temperature : 34…248 ºF
- Stroke : 5.5 mm
- Dimensions (W x H x D) : 2.56 x 5.49 x 4.17 in
