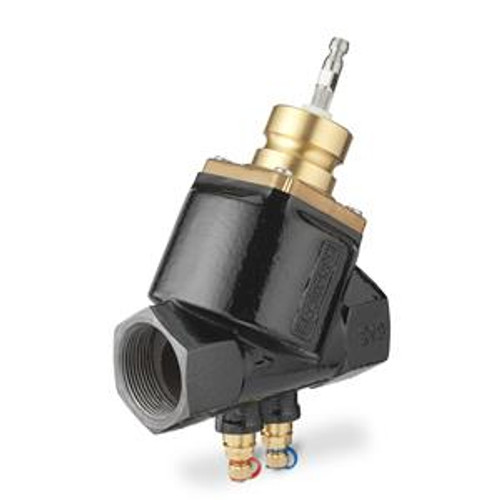

599-04316-50 - PICV, 2 inch, Normally Open, 50 GPM max. flow preset
- Valve Body Style : Stroke-Globe
- Port Configuration : 2-Way Normally open
- End Connection : NPT
- Connecting thread : Internal NPT thread
- Material, valve body : Ductile Iron
- Material, inside set : Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
- Medium : Water , Water with anti-freeze
- Max GPM : 50 gpm
- DN : 50
- Min GPM : 10 gpm
- Preset GPM : 50 gpm
- Leakage rate : ANSI Class IV (0.01%) @ 100 psi
- Rangeability : = 100:1
- Medium temperature : 34…248 ºF
- Stroke : 15 mm
- Dimensions (W x H x D) : 3.7 x 8.78 x 5.47 in
