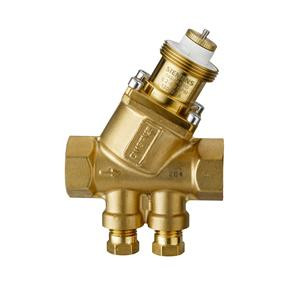

599-04320-1 1/2 PICV 1.0 GPM NO
- EAN : Not available
- UPC : Not available
- Commodity Code : 8481809020
- LKZ_FDB/ CatalogID : BT_Catalog
- Product Group : QBC8
- Group Code : H5CC
- Country of origin : Denmark
- RoHS Compliance : Since: 06-06-19
- WEEE (2012/19/EU) Take-Back Obligation : No
- Technical specifications:Valve Size : 0.5 in
- Valve Body Style : Stroke-Globe
- End Connection : NPT
- Material, valve body : Brass
- Trim Material : Brass
- Material, inside set : Plug: Brass; Stem: Stainless Steel; Seals: EPDM O-ring
- Flow Characteristic : Linear
- Medium : Water; Water with anti-freeze
- Pressure Class : ANSI 250
- Leakage rate : ANSI Class IV (0.01%) @ 200 psi
- Leakage rate, class : ANSI Class IV
- Rangeability : ≥ 100:1
- Stroke : 1/5 in
- Warranty : 5 Years
