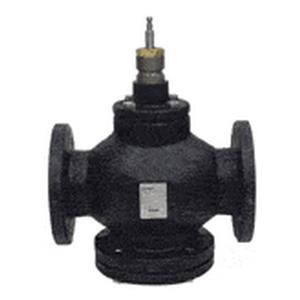

599-05983 - Flowrite 5" Flanged, 2-Way Valve, NO, 250 Cv, Eq Percent, Brass Trim, ANSI 125
Technical Specifications:
- Valve Body Style: Stroke-Globe
- Port Configuration: 2-Way Normally open
- End Connection: Flanged
- Connecting thread: Valve flange face-to-face dimensions meet ISA 75.03 standards
- Material, valve body: Cast iron ASTM A126 Class B
- Material, inside set: Body Trim: Bronze , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
- Medium: Saturated steam , Water , Water with anti-freeze , Steam
- DN: 125
- Leakage rate: Class IV (0.01% of Cv)
- Rangeability: >100:1
- Medium temperature: 20…250 ºF
- Stroke: 1-1/2 in., 40 mm
- Dimensions (W x H x D): 15.75 x 18.54 x 10 in
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: 599-05983
