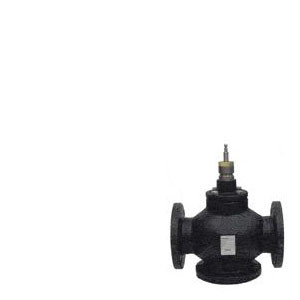

599-06177 - Flowrite 4" Flanged, 3W Valve, 160Cv, Stainless Steel Trim, ANSI 250
- Valve Body Style : Stroke-Globe
- Port Configuration : 3-Way Mixing
- End Connection : Flanged
- Material, valve body : Cast iron ASTM A126 Class B
- Material, inside set : Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
- Medium : Water , Water with anti-freeze
- DN : 100
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : >100:1
- Medium temperature : 20…250 ºF
- Stroke : 1-1/2 in., 40 mm
- Dimensions (W x H x D) : 14.49 x 15.91 x 10 in
