599-07331

$3,617.68
(No reviews yet) Write a Review
SKU:
599-07331
Adding to cart… The item has been added

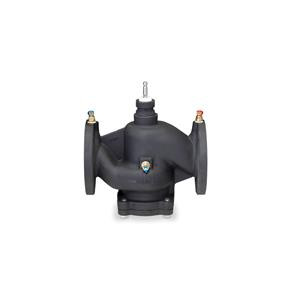

599-07331 - PICV, 3 inch, ANSI 125, 195 GPM max flow, w/ 3 P/T ports
Valve Size :
3 in
Port Configuration :
2-Way Normally open
End Connection :
Flanged
Material, valve body :
Cast Iron
Trim Material :
Brass
Material, inside set :
Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic :
Linear
Medium :
Water , Water with anti-freeze
Max GPM :
195 gpm
Min GPM :
31 gpm
Preset GPM :
195 gpm
Pressure Class :
ANSI 125
Leakage rate :
Class IV (0.01% of Cv)
Rangeability :
= 100:1
Max. Inlet Pressure (absolute), Liquid :
200 psi
Max. Differential Pressure, Liquid :
90 psi
Medium temperature :
34…250 ºF
Stroke :
3/4 in., 20 mm
Close-off Pressure :
100 psi
Dimensions (W x H x D) :
11.75 x 8.27 x 7.5 in
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10391420_Pressure%2520Independent%2520Control%2520Series%25202-Way%2520Flanged%2520_en.pdf&EXT=.pdf&SID=A6V10391420&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5cA6V10391438_Pressure%2520Independent%2520Control%2520Series%2520Two-Way%2520Cast%2520_en.pdf&EXT=.pdf&SID=A6V10391438&KEY=3&DTP=Data+Sheet+for+Product
