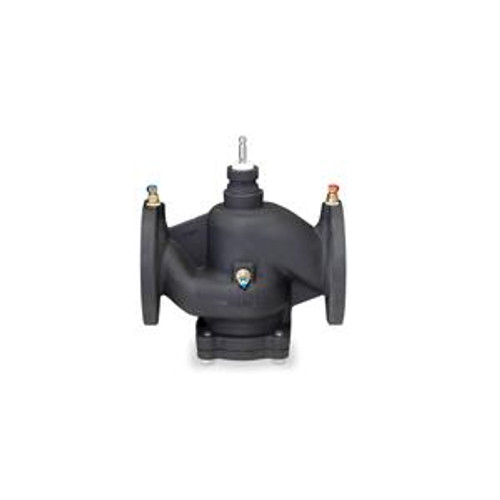

599-07332 - PICV, 4 inch, ANSI 125, 370 GPM max flow, w/ 3 P/T ports
- Valve Size : 4 in
- Port Configuration : 2-Way Normally open
- End Connection : Flanged
- Material, valve body : Cast Iron
- Trim Material : Brass
- Flow Characteristic : Linear
- Medium : Water , Water with anti-freeze
- Max GPM : 370 gpm
- Min GPM : 63 gpm
- Preset GPM : 370 gpm
- Pressure Class : ANSI 125
- Leakage rate : Class IV (0.01% of Cv)
- Rangeability : = 100:1
- Max. Inlet Pressure (absolute), Liquid : 200 psi
- Max. Differential Pressure, Liquid : 90 psi
- Medium temperature : 34…250 ºF
- Stroke : 1-1/2 in., 40 mm
- Close-off Pressure : 100 psi
- Dimensions (W x H x D) : 13.86 x 11.73 x 9 in
