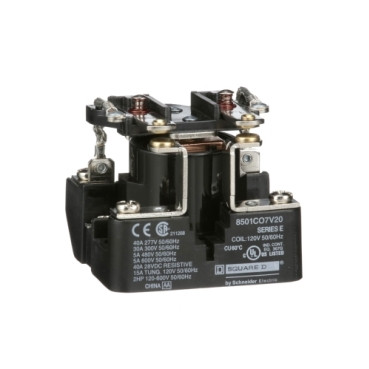

8501CO7V20

$82.60
(No reviews yet) Write a Review
SKU:
8501CO7V20
Adding to cart… The item has been added
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
product range :
Power Relay 8501C
product type :
Power relay
short name :
type C
[In] rated line current :
30 A
switch function :
DPST
contact composition :
2 NO
[Uc] control circuit voltage :
120 V AC 50/60 Hz
horsepower rating :
2.0 hp
maximum switching voltage :
600 V AC
class number :
8501
phase :
1 phase
terminal connects :
Screw clamp terminal
wire range :
AWG 10 copper
terminal tightening torque :
11…15 lbf.in (1.24…1.69 N.m)
coil burden :
10 VA
mounting :
Panel mounting
ambient temperature range - operational :
-22…122 °F (-30…50 °C)
product certifications :
UL listed file E78351 CCN NLDX, CSA, CE
Category :
US10CP221131
Discount Schedule :
0CP2
GTIN :
785901052258
Returnability :
Yes
Country of origin :
CN
Unit Type of Package 1 :
PCE
Number of Units in Package 1 :
1
Package 1 Height :
3.00 in (7.62 cm)
Package 1 Width :
2.50 in (6.35 cm)
Package 1 Length :
3.30 in (8.382 cm)
Package 1 Weight :
10.24 oz (290.299 g)
Unit Type of Package 2 :
CAR
Number of Units in Package 2 :
25
Package 2 Height :
4.00 in (10.16 cm)
Package 2 Width :
15.80 in (40.132 cm)
Package 2 Length :
16.70 in (42.418 cm)
Package 2 Weight :
16.77 lb(US) (7.607 kg)
Warranty :
18 months
