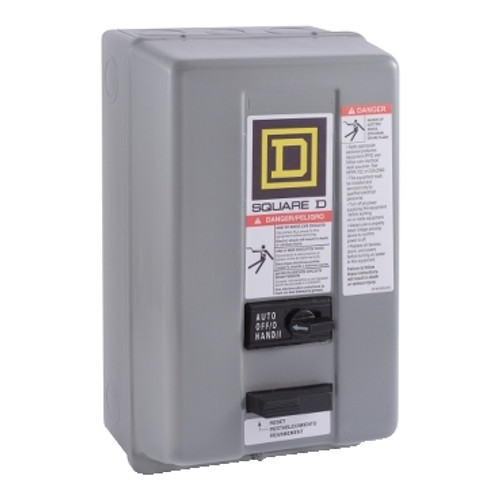

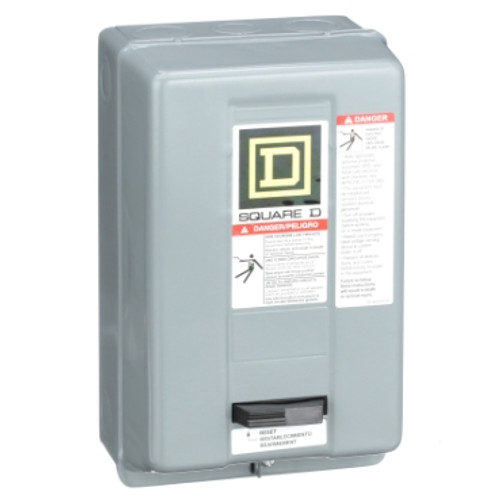

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has single phase ratings of 0.33 HP at 115 VAC and 1 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
- Product Type : Motor starter
- Product Range : S
- Starter Type : Non reversing
- NEMA Size : 0
- Rated Current : 9 A
- Number of Poles : 2P
- Maximum Voltage Rating : 600 V AC
- Phase : 1 phase
- Type of Overload : Melting alloy 1
- Horsepower Rating : 0.33 HP 115 V AC, 1 HP 230 V AC
- Coil Voltage : 110 V AC 50 Hz, 120 V AC 60 Hz
- Control Circuit Type : Common control circuit
- Control Units : No control units
- Pilot Light : Without pilot light
- Auxiliary Contacts : Without
- Terminal Type : Screw clamp terminals
- Height : 10.00 in (254.00 mm)
- Width : 6.00 in (152.40 mm)
- Depth : 5.56 in (141.22 mm)
- Enclosure Type : NEMA 1 painted sheet steel
- Certifications : UL Listed, CSA, NEMA
- Category : US10CP121191
- Discount Schedule : 0CP1
- GTIN : 785901080374
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 6.50 in (16.51 cm)
- Package 1 Width : 6.40 in (16.256 cm)
- Package 1 Length : 10.60 in (26.924 cm)
- Package 1 Weight : 7.06 lb(US) (3.202 kg)
- Warranty : 18 months
