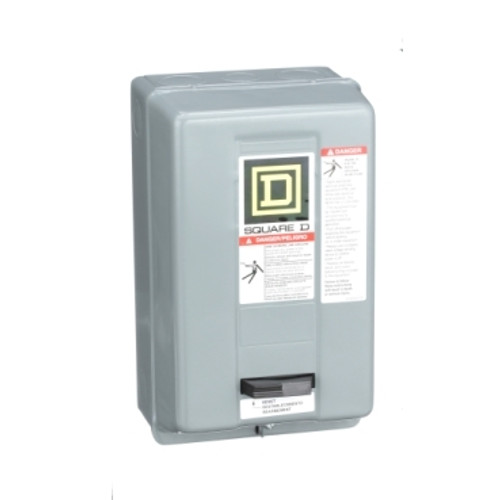

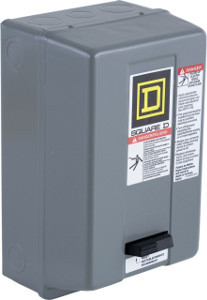

Type S Full Voltage Starter|NEMA Size: Size 00|Degree of Protection: NEMA 1 General Purpose|Control Circuit Voltage: 110V AC 50Hz,120V AC 60Hz|Line Rated Current: 9A|Poles Description: 2-Poles|Number of Phases: 1-Phase|Control Circuit: Separate Control Circuit|Motor Starter Type: Non-Reversing|Electrical Connection: Screw Clamp Terminals
- [Uc] control circuit voltage : 110 V AC 50 Hz~~
- [Uc] control circuit voltage : 120 V AC 60 Hz
- [Ue] rated operational voltage : 600 V AC
- auxiliary contact composition : Uden
- Brand : Square D
- By Schneider : Yes
- control circuit : Separate control circuit
- Control Type : No control units
- Depth : 5.56 in (141.22 mm)
- Electrical Connection : Screw clamp terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 2 pole starter
- Global Keywords : 9A starter
- Global Keywords : Low voltage
- Global Keywords : Melting alloy overload
- Global Keywords : Motor overload
- Global Keywords : Motor overload protection
- Global Keywords : Motor starters
- Global Keywords : NEMA motor starter
- Global Keywords : NEMA size 00
- Global Keywords : Non reversing starter
- Global Keywords : Single phase motor starter
- Global Keywords : Type S starter
- Height : 10.00 in (254.00 mm)
- Line Rated Current : 9 A
- Local Signalling : Without pilot light
- Manufacturer : Schneider Electric
- motor starter type : Non reversing
- NEMA degree of protection : NEMA 1 painted sheet steel
- NEMA size : 0
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 1 phase
- Product Certifications : CSA
- Product Certifications : NEMA
- Product Certifications : UL Listed
- Product Compatibility : Circuit-breaker: 5 kA at 600 V AC
- Product Compatibility : Fuse: 5 kA at 600 V AC
- Product Or Component Type : Motor starter
- PVC free : Yes
- Rated Power In Hp : 0.33 HP 115 V AC
- Rated Power In Hp : 1 HP 230 V AC
- Sustainable packaging : Yes
- Take-back : No
- thermal overload type : Melting alloy 1
- Type Of Network : 2P
- UNSPSC Classification v19 : 39121521
- UNSPSC Classification v23 : 39121521
- Warranty : 18 months
- Width : 6.00 in (152.40 mm)
