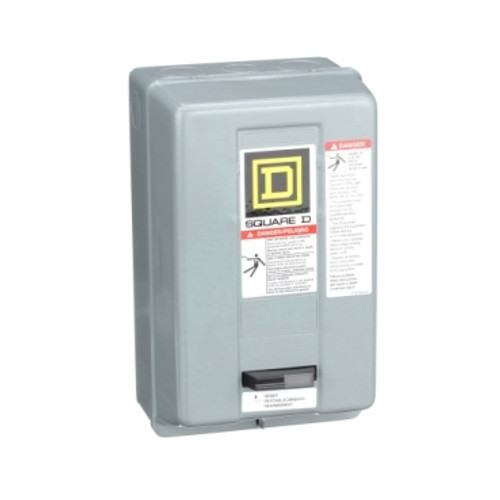

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
- Product Type : Motor starter
- Product Range : S
- Starter Type : Non reversing
- NEMA Size : 0
- Rated Current : 18 A
- Number of Poles : 3P
- Maximum Voltage Rating : 600 V AC
- Phase : 3 phase
- Type of Overload : Melting alloy 3
- Horsepower Rating : 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC
- Coil Voltage : 208 V AC 60 Hz
- Control Circuit Type : Separate control circuit
- Control Units : No control units
- Pilot Light : Without pilot light
- Auxiliary Contacts : Without
- Terminal Type : Screw clamp terminals
- Height : 10.00 in (254.00 mm)
- Width : 6.00 in (152.40 mm)
- Depth : 5.56 in (141.22 mm)
- Enclosure Type : NEMA 1 painted sheet steel
- Certifications : UL Listed, CSA, NEMA
- Category : 21191 - 8502,36 SA,SB(NOT S*R,T,W)
- Discount Schedule : CP1
- GTIN : 785901463320
- Returnability : No
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 10.00 in (25.4 cm)
- Package 1 Width : 5.98 in (15.2 cm)
- Package 1 Length : 5.55 in (14.1 cm)
- Package 1 Weight : 6.00 lb(US) (2.722 kg)
- Warranty : 18 months
