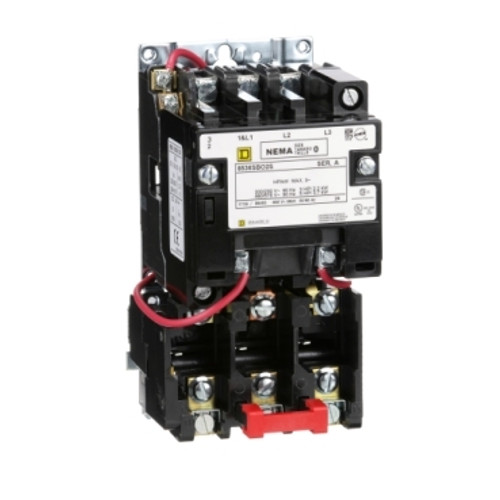

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 4.52 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
- Product Type : Motor starter
- Product Range : S
- Starter Type : Non reversing
- NEMA Size : 0
- Rated Current : 18 A
- Number of Poles : 3P
- Maximum Voltage Rating : 600 V AC
- Phase : 3 phase
- Type of Overload : Melting alloy 3
- Horsepower Rating : 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC
- Coil Voltage : 220 V AC 50 Hz, 240 V AC 60 Hz
- Control Circuit Type : Common control circuit
- Control Units : No control units
- Pilot Light : Without pilot light
- Auxiliary Contacts : Without
- Terminal Type : Screw clamp terminals
- Height : 6.81 in (172.96 mm)
- Width : 3.50 in (88.90 mm)
- Depth : 4.22 in (107.19 mm)
- Enclosure Type : Not rated (open device)
- Certifications : UL Listed, CSA, NEMA
- Category : US10CP121191
- Discount Schedule : 0CP1
- GTIN : 785901871828
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 4.50 in (11.43 cm)
- Package 1 Width : 5.90 in (14.986 cm)
- Package 1 Length : 8.00 in (20.32 cm)
- Package 1 Weight : 4.06 lb(US) (1.842 kg)
- Warranty : 18 months
