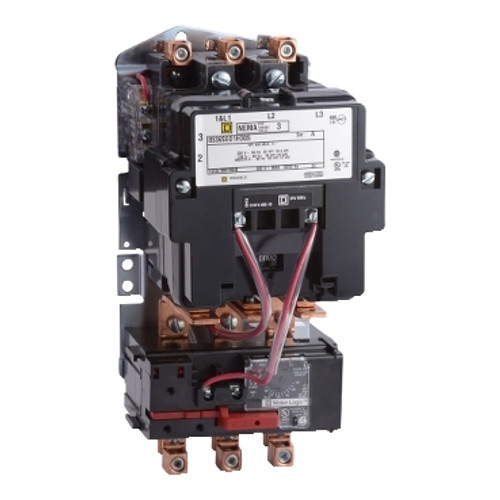

Type S Full Voltage Starter|NEMA Size: Size 3|Degree of Protection: Open Device|Control Circuit Voltage: 208V AC 60 Hz|Line Rated Current: 90A|Poles Description: 3-Poles|Number of Phases: 3-Phase|Control Circuit: Common Control Circuit|Motor Starter Type: Non-Reversing|Electrical Connection: Screw Clamp Terminals
- [Uc] control circuit voltage : 208 V AC 60 Hz~~
- [Ue] rated operational voltage : 600 V AC
- auxiliary contact composition : Uden
- Brand : Square D
- By Schneider : Yes
- control circuit : Common control circuit
- Control Type : No control units
- Depth : 6.50 in (165.10 mm)
- Electrical Connection : Screw clamp terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 3 phase motor starter
- Global Keywords : 3 pole starter
- Global Keywords : 90A starter
- Global Keywords : Low voltage
- Global Keywords : Melting alloy overload
- Global Keywords : Motor overload
- Global Keywords : Motor overload protection
- Global Keywords : Motor starters
- Global Keywords : NEMA motor starter
- Global Keywords : NEMA size 3
- Global Keywords : Non reversing starter
- Global Keywords : Type S starter
- Height : 11.09 in (281.69 mm)
- Line Rated Current : 90 A
- Local Signalling : Without pilot light
- Manufacturer : Schneider Electric
- motor starter type : Non reversing
- NEMA degree of protection : Not rated (open device)
- NEMA size : 3
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Phase : 3 phase
- Product Certifications : CSA
- Product Certifications : NEMA
- Product Certifications : UL Listed
- Product Compatibility : Circuit-breaker: 5 kA at 600 V AC
- Product Compatibility : Fuse: 5 kA at 600 V AC
- Product Or Component Type : Motor starter
- Rated Power In Hp : 25 HP 200 V AC
- Rated Power In Hp : 30 HP 230 V AC
- Rated Power In Hp : 50 HP 460 V AC
- Rated Power In Hp : 50 HP 575 V AC
- Take-back : No
- thermal overload type : Melting alloy 3
- Type Of Network : 3P
- UNSPSC Classification v19 : 39121521
- UNSPSC Classification v23 : 39121521
- Warranty : 18 months
- Width : 5.47 in (138.94 mm)
