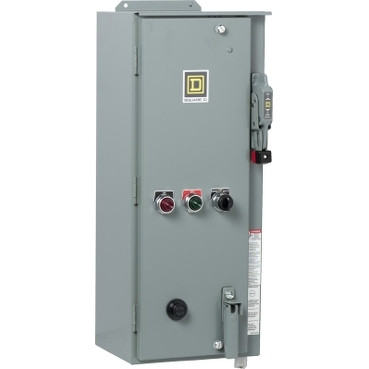

NR COMBO SRTR SZ 2 3P NEMA 12
- Product : Combination Starter
- Type : S
- Control Circuit Type : Separate control circuit
- Control Circuit Voltage : 110 V AC 50 Hz, 120 V AC 60 Hz
- Starter Type : Non reversing
- Number of Poles : 3P
- Horsepower Rating : 7.5…15 hp 480 V AC, 3 phase, 1.5…7.5 hp 240 V AC, 3 phase
- Maximum Voltage Rating : 240/480 V AC
- Control Units : Selector switch HAND-OFF-AUTO)
- Pilot Light : Red indicator on LED, Green indicator off LED
- Auxiliary Contacts : 2 NO + 2 NC
- Thermal overload type : Solid state Motor Logic class 10/20 9…27 A
- Disconnect Type : Circuit breaker, 30 A, electrical SPDT
- Circuit breaker type : EMCP
- Breaking capacity : 100 kA 480 V AC, 50 kA 600 V AC
- Height : 27.75 in (704.85 mm)
- Depth : 9.59 in (243.59 mm)
- Width : 10.5 in (266.70 mm)
- Handle Swing : 3.25 in (82.55 mm)
- Enclosure Type : NEMA 12 painted sheet steel with external reset
- NEMA size : 2
- Product Certifications : UL listed file E152395 CCN NKJH, UL listed file E152395 CCN NKJH7, CSA file 584 class 3211 04
- Category : US10CP121213
- Discount Schedule : 0CP1
- GTIN : 785901973775
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 12.00 in (30.48 cm)
- Package 1 Width : 14.00 in (35.56 cm)
- Package 1 Length : 32.50 in (82.55 cm)
- Package 1 Weight : 53.00 lb(US) (24.04 kg)
- Warranty : 18 months
