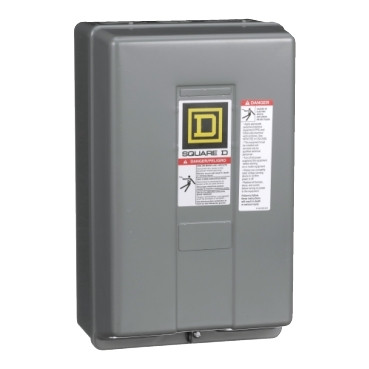

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 60 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- Product : Electrically Held Lighting Contactor
- Type : S
- Control Circuit Voltage : 120 V AC 60 Hz, 110 V AC 50 Hz
- Current Rating : 60 A
- Number of Poles : 3P
- Control Units : No control units
- Pilot Light : Without pilot light
- Auxiliary Contacts : Without
- Other Options : None
- Electrical Connection : Lugs
- Height : 12.68 in (322 mm)
- Depth : 6.02 in (153 mm)
- Width : 7.80 in (198 mm)
- Enclosure Type : NEMA 1 painted sheet steel surface none
- Product Certifications : UL Listed, CSA
- Category : US10CP121325
- Discount Schedule : 0CP1
- GTIN : 785901619499
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 7.50 in (19.05 cm)
- Package 1 Width : 8.20 in (20.828 cm)
- Package 1 Length : 13.30 in (33.782 cm)
- Package 1 Weight : 12.24 lb(US) (5.552 kg)
- Warranty : 18 months
