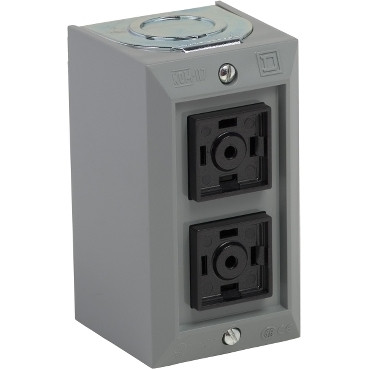

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. Each push button has a normally open and a normally closed contact. Each push button is supplied without a legend insert. The required legend insert must be purchased separately. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified. \ It can be surface mounted, suitable for indoor installation.\ \ The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options.\
- Range of Product : Harmony 9001B
- Product or Component Type : Complete control station
- Device short name : 9001BG
- Control station composition : 2 push-buttons
- Contacts type and composition : 2 NO + 2 NC
- Connections - terminals : Screw clamp terminal
- [Ie] rated operational current : 5 A 600 V
- Device mounting : Surface
- Type of Installation : Indoor
- NEMA degree of protection : NEMA 1
- Product Certifications : CE, UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03
- Environmental characteristic : Standard environment
- Category : US10CS121421
- Discount Schedule : 0CS1
- GTIN : 785901390251
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 10.16 in (25.806 cm)
- Package 1 Width : 4.00 in (10.16 cm)
- Package 1 Length : 25.81 in (65.548 cm)
- Package 1 Weight : 10.08 oz (285.763 g)
- Warranty : 18 months
