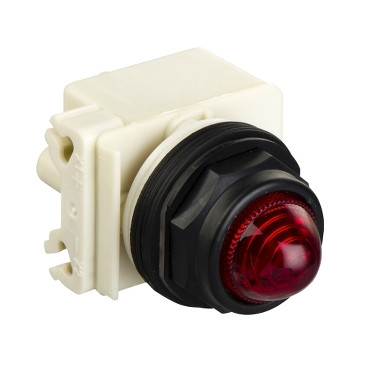

This Harmony 9001SK, red pilot light with transformer and plastic dome is supplied with 110V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Warranty : 18 months |PDF1
- Range of Product : Harmony 9001SK
- Product or Component Type : Pilot light
- Device short name : 9001SK
- Lens type : Domed plastic
- Light block supply : Via integral transformer 120 V AC 50/60 Hz 6 V)
- bezel material : Plastic
- Mounting diameter : 1.18 in (30 mm)
- Shape of signaling unit head : Round
- Cap/operator or lens colour : Red
- Light source : incandescent
- Bulb base : BA 9s
- [Us] rated supply voltage : 110...120 V AC 50/60 Hz
- Tightening torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
- Shape of screw head : Cross slotted
- Connections - terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- [Ith] conventional free air thermal current : 10 A
- Short-circuit protection : 10 A cartridge fuse EN/IEC 60947-5-1
- [Ui] rated insulation voltage : 250 V 2)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage : 2.5 kV EN/IEC 60947-1
- Operating position : Any position
- CAD overall width : 2.13 in (54 mm)
- CAD overall height : 2.76 in (70 mm)
- CAD overall depth : 1.65 in (42 mm)
- Net Weight : 0.40 lb(US) (0.181 kg)
- device presentation : Complete product
- Lens type : Domed
- [Us] rated supply voltage : 110...120 V
- Light block supply : Via integral transformer
- Supply frequency : 50...60 Hz
- Lens material : Polycarbonate
- Size : 30 mm
- Light source : Incandescent bulb
- Electrical shock protection class : Class II IEC 61140
- Protective treatment : TC
- IP degree of protection : IP66 IEC 60529
- NEMA degree of protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
- Vibration resistance : 7 gn 2…500 Hz)IEC 60068-2-6
- Shock resistance : 50 gn IEC 60068-2-27
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Product Certifications : UL 508, NEMA
- Category : US10CS121429
- Discount Schedule : 0CS1
- GTIN : 785901820864
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.89 in (4.801 cm)
- Package 1 Width : 2.21 in (5.601 cm)
- Package 1 Length : 3.70 in (9.401 cm)
- Package 1 Weight : 5.92 oz (167.829 g)
- Warranty : 18 months
