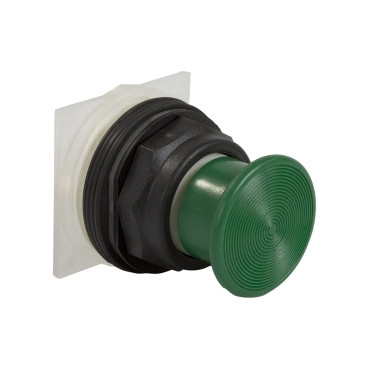

This Harmony 9001SK, modular green push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 35mm mushroom head. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Range of Product : Harmony 9001SK
- Product or Component Type : Head for push-button
- Device short name : 9001SK
- Operator additional information : Screw-on plastic with set screw
- bezel material : Plastic
- Shape of signaling unit head : Round
- Mechanical durability : 5000000 cycles
- device presentation : Basic element
- Cap/operator or lens colour : Green
- Operator profile : Mushroom Ø 35 mm
- Type of operator : Spring return
- Contacts type and composition : Without contact block
- Size : 30 mm
- Protective treatment : TC
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Overvoltage category : Class II IEC 61140
- IP degree of protection : IP66
- NEMA degree of protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
- Product Certifications : UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
- Vibration resistance : 7 gn 2…500 Hz)IEC 60068-2-6
- Category : US10CS121429
- Discount Schedule : 0CS1
- GTIN : 785901042174
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 7.62 in (19.355 cm)
- Package 1 Width : 3.00 in (7.62 cm)
- Package 1 Length : 19.35 in (49.161 cm)
- Package 1 Weight : 8.00 oz (226.796 g)
- Warranty : 18 months
