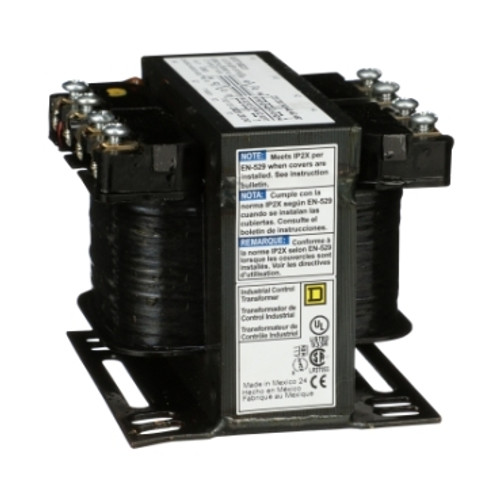

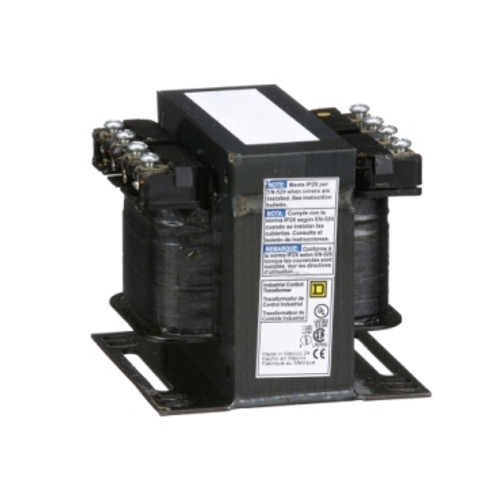

9070T100D3

Brand :

Square D~~

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile :

No need of specific recycling operations

Depth :

3.34 in (84.84 mm)

Electrical Connection :

Screw clamp terminals

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

100 VA

Global Keywords :

120 V

Global Keywords :

1ph

Global Keywords :

208 V

Global Keywords :

55 degrees

Global Keywords :

9070T

Height :

2.89 in (73.41 mm)

insulation temperature :

221 °F (105 °C)

Manufacturer :

Schneider Electric

Material :

Copper: winding

NEMA Protection Rating :

Not rated (open device)

Number of Units in Package 2 :

450

Package 2 Height :

40.00 in (101.600 cm)

Package 2 Length :

48.00 in (121.920 cm)

Package 2 Weight :

1760.0002 lb(US) (798.322 kg)

Package 2 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Phase :

1 phase

primary voltage :

208 V 120 V

Product Certifications :

CSA file LR37055 guide 184-N-90

Product Certifications :

UL listed file E61239

Product Compatibility :

FSC1

Product Or Component Type :

Industrial Control Transformer

PVC free :

Yes

Rated Power In Va :

100 VA CE

Rated Power In Va :

100 VA CSA

Rated Power In Va :

100 VA NOM

Rated Power In Va :

100 VA UL

Take-back :

No

temperature rise :

55 °C

Unit Type of Package 2 :

PAL

UNSPSC Classification v19 :

39121026

UNSPSC Classification v23 :

39121026

Volume of Package 2 :

1258526.515 cm3

Warranty :

18 months

Width :

3.38 in (85.85 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/0100CT1501_SEC-14.PDF
